GENERAL INFORMATION
Compact Modular Piezo Actuator with Piezo Driver Unit is designed to add additional 35-50 micron travel range with nanometric resolution and nanoposition control for existing three-axes stages, e.g. for Newport M-460-XYZ-05 stage (see Spectral Microscope for Laser Induced Bio-Luminiscence Study )
The piezo actuator fits between the standard stage and existing Micrometer as SM or Mitutoyo.

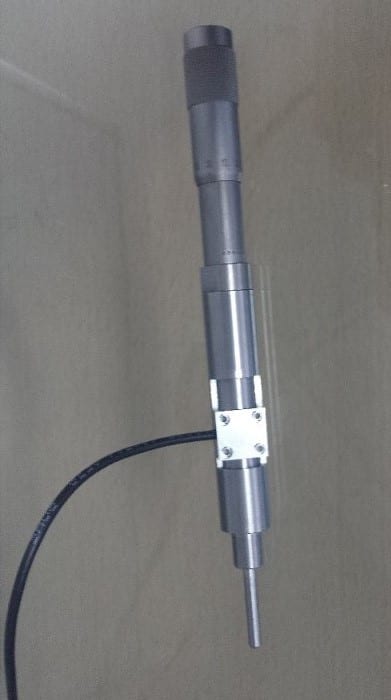

The piezo-actuator itself with Newport Micrometer SM13 is shown on the right.
The Control box (Piezo Driver) provides control of piezo actuators for axes X,Y, Z, both in the manual mode and the computer (external) mode. The voltage supplied from the Piezo Driver to the piezo actuator is monitored by the Voltage Monitor.
ADVANTAGES
- Compact design - only 14 mm diameter.
- Simple, user-friendly control.
Now you can order this device directly from us:
contact us
